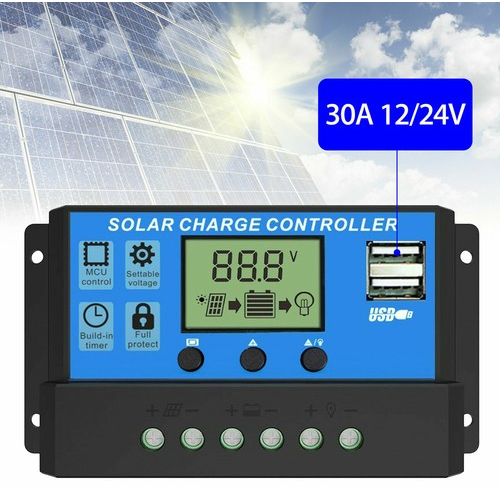

Product description
Type:Solar Power Meters
Material:ABS+component
Power:12V/24V
Display Type:LCD Display
Interface:Dual USB
Feature:
1. Make sure that the battery has enough voltage for the controller to recognize the type of battery before first installation.
2. The battery cable should be as short as possible to minimize losses.
3. The regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL
It is not suitable for nickel metal hydride batteries, lithium ions or batteries.
4. The charge controller is only suitable for the regulation of solar modules. Never connect another load source to the charge controller.
2. One-key configuration, digital display, automatic memory function.
3. Fully pwm-load management load.
4. Build-in short circuit protection, open circuit protection, reverse protection, over load protection
5. Dual mosfet Reverse current protection, low heat productions.
1. Connect the battery to the charge controller plus and minus. 1 will be displayed, in case of detecting 12 V battery, 2 in case of detecting 24 V battery.
2. Connect the photovoltaic module to the plus and minus regulator.
3. Connect to the consumer for the charge controller plus and minus.the reverse order applies when uninstalling!
An incorrect sequence order can damage the controller!
Package List:
1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2.Please allow 1-3cm measuring deviation due to manual measurement.
Protection Properties
Reverse Current Protection, Low Voltage Protection, Short Circuit Protection, Discharge Protection
Features
All Daylight Conditions, Automatic Voltage Detection, LCD Display, USB Port
Application
Agriculture/Farming, Aquaculture, Camping/Hiking, Electronics, Home/Garden, Marine, Municipal, Recreational Vehicle (RV), Commercial
SAFETY INSTRUCTIONS
Let the children keeps far away from the storage battery and the controller. When installing for the first time, please make sure the battery has sufficient voltage so that the Charger controller can recognize the normal battery type and system.
